Everything your project team needs to design and specify an Ecoglo system

Work through the building once. Record the design basis, mark the spaces that need treatment, resolve the suitability questions, and leave with a documentation pack scoped to your project and your market.

This is a concept tool. Final design responsibility stays with your project team.

Step 1 · Design basis

Establish the design basis

Record the project decisions already established by the appointed designers. The Specifier uses these inputs to tailor guidance — it does not replace the fire or electrical design.

Project name

Your role

Project stage

Design scope

Outside the Specifier

These need emergency lighting, an engineered design, or a product set the Specifier does not carry. They are shown so you can see where the tool stops — Ecoglo can refer you to a professional design for any of them.

F6.3.4 and F6.3.5 building risk group

These risk groups are specific to F6.3.4 and F6.3.5, and are different to the risk groups of C/AS2.

Compliance pathway

Building details and project documentation Optional

Building details

Building owner or developer

Building address

Legal address As per rates — include the Lot No and DP No.

Building Consent Authority

Building use

Hours of use

Project documentation

Fire report Including the fire safety drawings.

Architectural drawing set Site plan, floor plans, elevations and sections.

Electrical drawing set Lighting plan, electrical legend, light product data sheets and reflected ceiling plan.

Photographs of built areas Stairs, steps, ramps, corridors and the external side of exit doors. Existing buildings only.

Step 2 · Suitability

Is an Ecoglo system appropriate?

Answer at project or zone level. The tool identifies where standard Ecoglo guidance appears suitable, and where electrical or professional assessment remains necessary.

Can the escape route be clearly defined? A specific route must be capable of being marked and followed.

Are the external changes in level exposed to unobstructed daylight, ie less than 2 m under a canopy, or is the external change in level more than 2 m under a canopy? Photoluminescent path markings charge with sunlight. Installations more than 2 m under a canopy do not charge reliably.

Are there hazards that path marking cannot make safe? Dangerous machinery or unseen hazards require separate treatment.

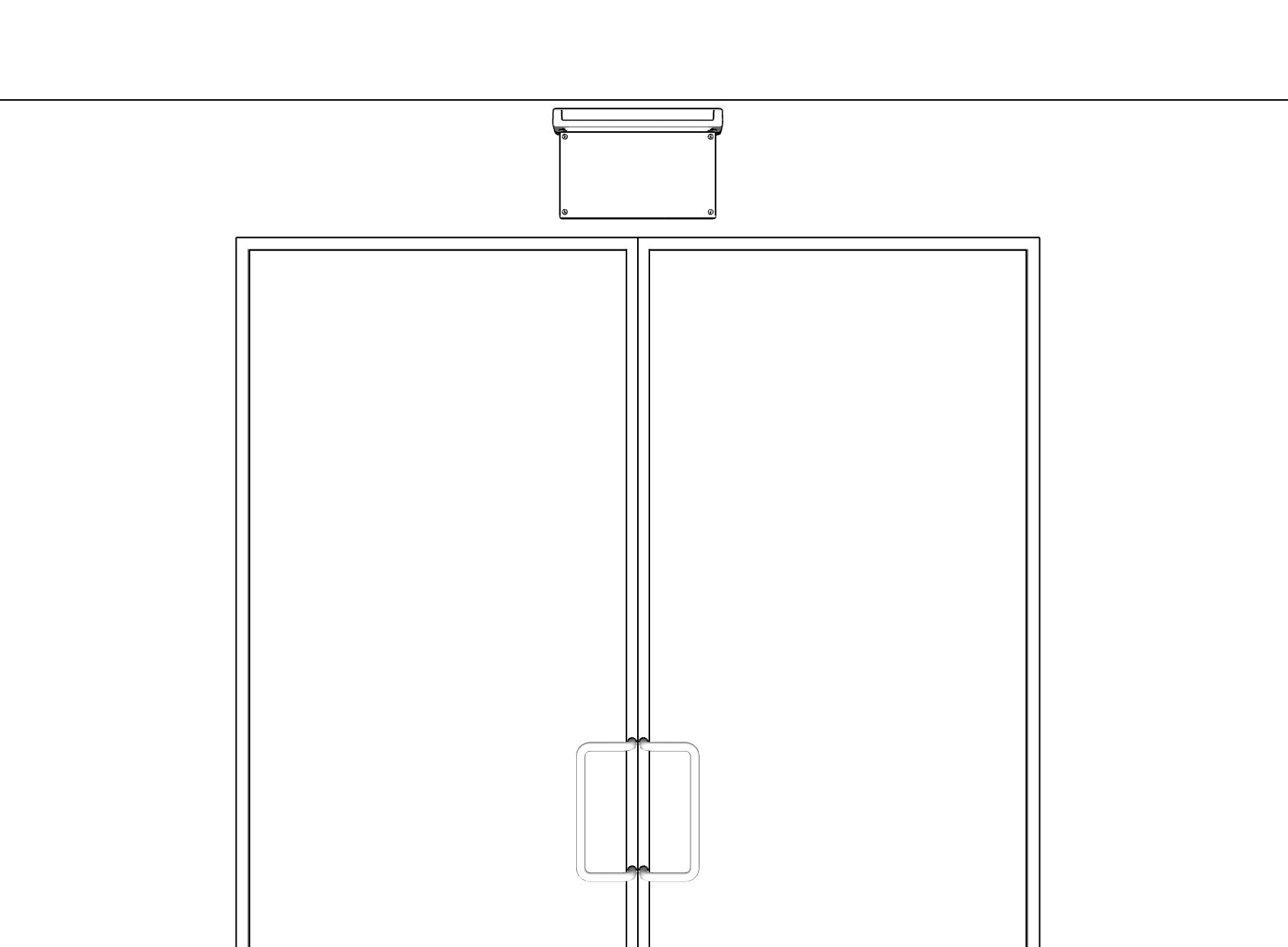

Are any signs required to be visible from more than 24 m? The Ecoglo exit signs are rated to a 24 metres maximum viewing distance. Additional exit signs may be required if the viewing distance exceeds 24 metres.

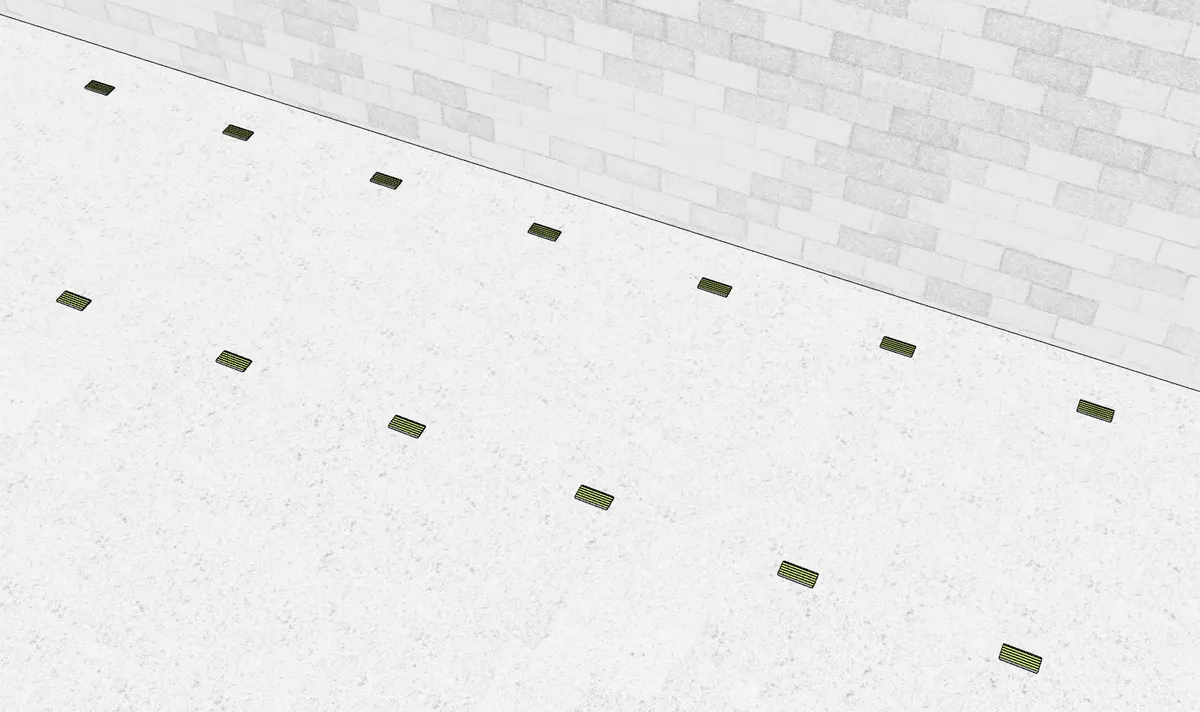

From any start point to the nearest external change in level, is the travel distance greater than 20 metres? Beyond 20 metres, emergency lighting is required for the remainder of the escape route.

Step 3 · Building features

Tick the features your building has

These are the places on the escape route an Ecoglo system treats. Tick everything your project contains — what you select here decides the products offered next and the drawing details you leave with.

Features in this project

Every product these features make specifiable is offered at the next step, already selected. Nothing here commits you to a code.

Step 4 · Products

Select the codes this project specifies

Every code the features you ticked make specifiable is selected to begin with. Deselect what the project will not use — the pack carries the datasheets, technical statements, warranties and installation instructions for what is left.

Step 5 · Design requirements

What this commits your drawings to

The details to show for each feature you selected, and where the Ecoglo scope stops. All of it travels with the pack — this is the read-through before you take it.

Scope and limitations

What an Ecoglo system covers on this project, and what it leaves to the appointed designers.

The Specifier covers external changes in level and internal hybrid LED exit signs. Anything else on the escape route is outside it.
No emergency lighting is designed, specified or implied on any compliance pathway. Where the escape route needs it, an electrical emergency lighting designer is required.
The markings are photoluminescent and charge on daylight. The charging basis has to be recorded on the architectural set, and a location more than 2 m under a canopy does not charge reliably.
The exit signs are rated to a 24 metres maximum viewing distance. Additional exit signs may be required where the viewing distance exceeds 24 metres.
Products are selected here as codes; sizes and profiles within a code are confirmed at detailed design against the built dimensions.
Installation is by others, to the controlled Ecoglo instructions carried in the pack. The notes here are the parts of those instructions that change a drawing or a programme.
The output is not an Ecoglo approval. Final design, coordination and producer statements remain with the appointed project designers.

Step 6 · Review & pack

Review the project and take the pack

Check the scope, assumptions and responsibilities, then generate the package. Unresolved items travel with the pack rather than being silently assumed.

Design basis

Product schedule

Outstanding confirmations

Package contents

Compliance schedule template XLSX Pre-populated with the selected products
Technical Justification for Ecoglo Markings PDF Supporting justification for the external path marking specified
Technical Justification for Ecoglo S20 Photoluminescent Exit Signs PDF Supporting justification for the passive exit signage specified
CodeMark certificate PDF Certification for the hybrid exit signs specified
Sample marked-up plan PDF TBC The sample plan for this scope
Product datasheets PDF Controlled datasheet for each selected product
Product technical statements PDF Performance and compliance evidence per product
Product warranties PDF Warranty terms for each selected product
Installation instructions PDF Fixing, substrate and sequencing for each selected product

Export

Prefer a person? Our team will review the pack with you before it goes into your specification.

Generated guidance is not an Ecoglo approval. Final design and coordination remain with the appointed project designers.
